Go Green!


Fox Dock boat lift,dock and pier building company in Mooresville on Lake Norman NC can help you choose the environmentally green choice of Veka decking for your dock and pier decking. This decking is a very durable plastic so that means you are not depleting our precious trees. Also when choosing Veka decking you don't have to worry about the harmfull risks of using treated wood.

Mayr Project

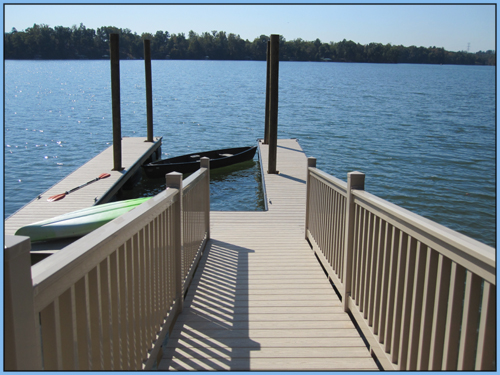

New Pier, Seating Area with Roof, Ramp, and Re-attachment of Existing Floating Unit

* Pilings: There were two marine grade wood pilings driven into the lake bed secured the floating unit into place. There were also wood pilings driven into the lake to support the pier and seating area. X-bracing was installed where needed.

* Frame: The frame of the pier, seating area, and ramp, consists of 2 x 8 pressure treated lumber fastened together with galvanized rust resistant bolts.

* Frame Encasements: Pressure treated 2 x 10 lumber was through bolted to the side of the frame on the pier, seating area, and ramp with galvanized rust resistant bolts. The 2 x 10 lumber encased the frames and created an inset decking effect.

* Decking:The decking installed was khaki colored Veka decking that was fastened down to the frame with the stainless steel screws.

* Handrail Posts and Handrails: 6 x 6 pressure treated handrail posts where through bolted to the side of the frame on the pier, seating area, and ramp with galvanized bolts. The posts have khaki colored vinyl post sleeves and caps with vinyl pickets in between each post.

* Seating Area Roof: The roof is a stick built hip roof with 6 x 6 roof posts with khaki vinyl sleeves that are bolted to the frame of the seating area with galvenized bolts. There is 2 x 8 pressure treated lumber as the banding on the roof. The roof consists of Spruce Pine lumber with a mixture of 2 x 4 and 2 x 6 pressure treated lumber. 1 x 4 dead wood was installed to the top of the roof. The tin roofing was fastened to the 1 x 4 wood with stainless steel screws. The facial board on the roof is the khaki colored Veka decking fastened into place with stainless steel decking screws.

Enjoy some shade under this finely constructed seating area over the water.

Mr.Mayr turn key project

Mr.Mayr turn key project
