Rehaume's Project

New Floating Double Slip, Ramp, Pier, and Seating Area

* Pilings: Marine grade wood pilings were driven into the lake bed to support the frame of the pier, ramp, and seating area. Galvanized pilings were driven into the lake bed to secure the floating slip into place. Also X bracing is installed where needed

* Frame: 2 x 8 pressure treated lumber fastened together with galvanized rust resistant bolts.

* Frame Encasements: Pressure treated 2 x 10 lumber was through bolted to the side of each frame with galvanized rust resistant bolts. The 2 x 10 lumber encased the frames and created an inset decking effect.

* Floatation: Black Formex floats secured to the frame of the floating slip with galvenized rust resistant bolts.

* Dock Rubbers and Cleats: Black Astro Nautics dock rubbers where nailed to the side of the floating slip frame with black PolyTop nails. Four cleats were bolted to the frame of the floating slip and placed on the deck with galvenized bolts.

* Decking: Khaki colored Veka decking fastened down with stainless steel decking screws.

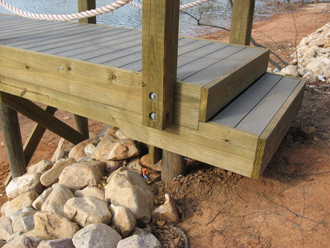

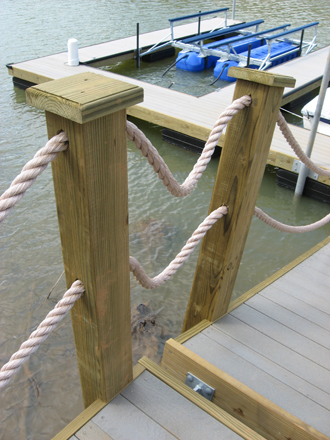

* Handrails: 6 x 6 pressure treated lumber was through bolted to the side of the frame on the seating area, pier, and ramp with galvanized bolts. The posts had two holes drilled in the top of them so that off white nautical rope could be threaded through each hole to make two runs of rope. Decorative wood accent caps installed on each post.

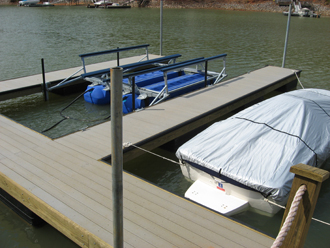

* Boat Lift: 6600 UL2 Hydrohoist air boat lift. The lift is bolted to the frame of the floating slip.

* River Rock: Before the River Rock was installed the area where the rocks were placed was cleaned of debris and smooth out. Then there was black landscaping cloth laid on top of the shoreline. Now the area is ready for the River Rock. The thicker rocks are selectively placed on the area closer to the water. All of the rocks are arranged in an attractive manner.

Beautifully crafted nautical style Pier and Dock System
